High-performance CNC press brake engineered for precision bending, heavy-duty production, and long-term reliability. Featuring Delem DA53T control, servo-driven hydraulics, and advanced laser safety system.

Industrial-Grade CNC Press Brake Built for Precision & Production

This 220 Ton 13ft CNC Hydraulic Press Brake is engineered for fabrication shops that demand accuracy, repeatability, and efficiency across a wide range of materials and part geometries.

Designed with a fully synchronized electro-hydraulic system, advanced CNC control, and servo-driven performance, this machine delivers consistent bend angles, reduced cycle times, and lower operating costs.

Whether you are producing structural components, enclosures, or high-precision formed parts, this system provides the control and rigidity required for modern fabrication environments.

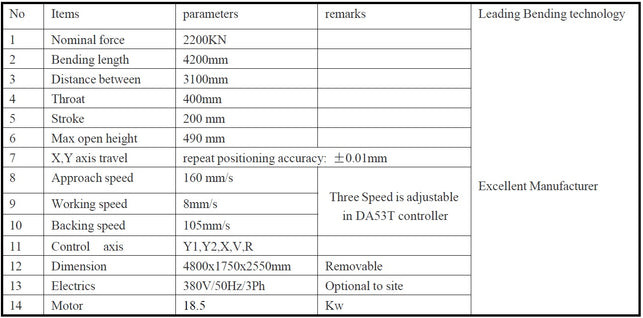

Key Specifications

• Capacity: 220 Ton (2200 kN)
• Bending Length: 4200 mm (165.35”)
• Distance Between Frames: 3100 mm
• Throat Depth: 400 mm
• Stroke: 200 mm
• Open Height: 490 mm
• Motor Power: 18.5 kW

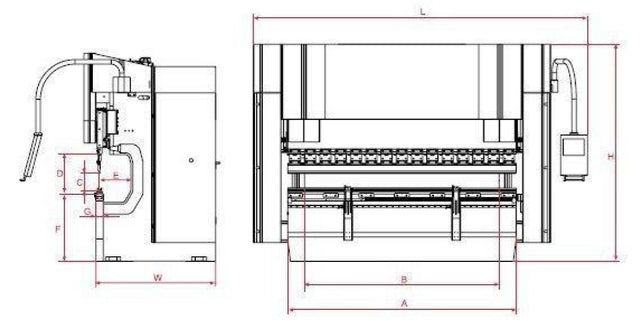

• Machine Dimensions: 4800 x 1750 x 2550 mm

CNC Control System – Delem DA53T

Industry-proven CNC control delivering precise bend programming and repeatability.

• 2D graphical programming interface
• Automatic bend sequencing
• Tool and material libraries
• Angle correction and compensation
• Multi-step bending capability

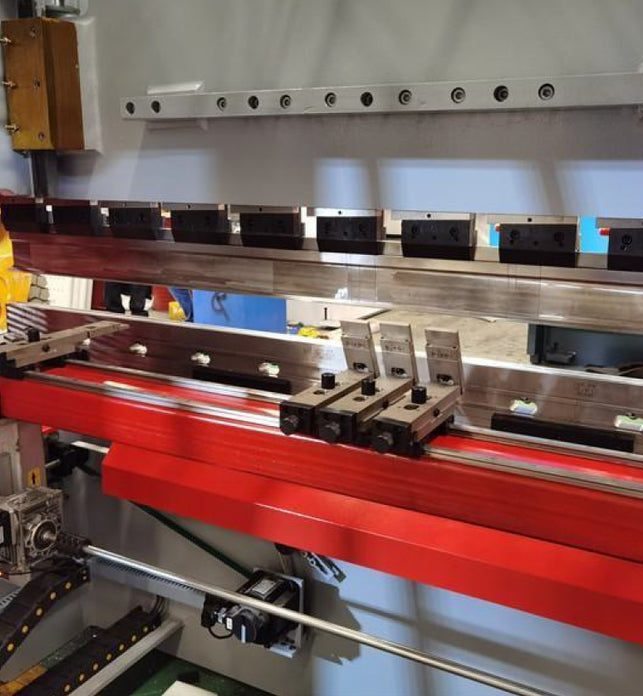

4+1 Axis Precision Backgauge System

Fully programmable multi-axis backgauge designed for high-accuracy positioning and repeatable production.

• Y1 / Y2 independent ram control (±0.01mm precision)
• X-axis ball screw driven positioning
• R-axis vertical adjustment
• V-axis crowning compensation
• Independent finger movement for complex parts

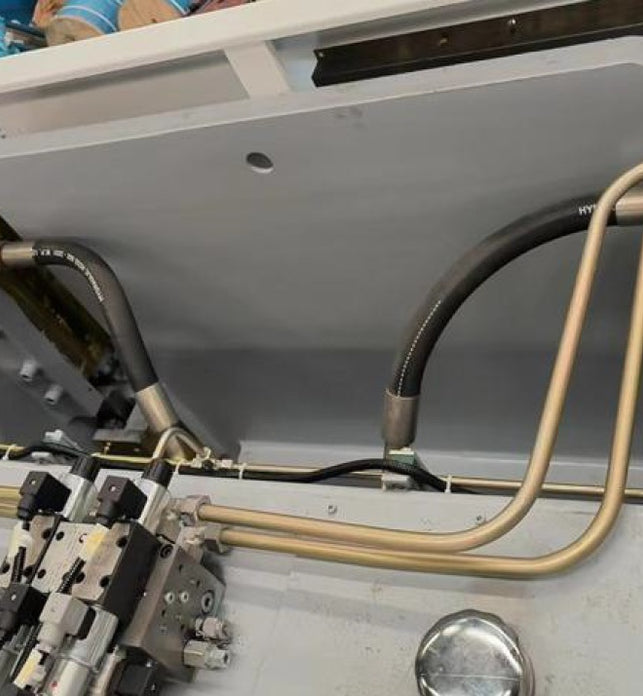

Servo-Driven Hydraulic System

Advanced closed-loop electro-hydraulic servo system delivers:

• Higher positioning accuracy
• Reduced energy consumption
• Lower heat generation
• Stable performance under continuous load

System components include high-quality hydraulic integration and precision control valves designed for long service life and reliability

Laser Safety Protection System

Integrated DSP laser safety system allows:

• High-speed approach with operator protection
• Automatic safety engagement during bending
• Increased productivity compared to light curtain systems

Machine Frame & Build Quality

Engineered for rigidity, accuracy, and long-term durability:

• Fully welded steel frame
• Stress-relieved through tempering process
• Precision machined in a single setup for alignment accuracy
• Sandblasted and coated with anti-corrosion finish
• Industrial-grade polyurethane paint system

This ensures consistent bending accuracy over the life of the machine.

Hydraulic & Mechanical Performance

• Electro-hydraulic synchronized ram control
• Parallelism tolerance of Y1/Y2 within 0.01mm
• Programmable pressure holding at bottom dead center
• Smooth ram movement for operator control
• Capable of off-center and cone bending applications

CNC Crowning System

Integrated crowning compensation ensures consistent bend angles across full length:

• Automatic adjustment via CNC control
• Eliminates deflection inconsistencies
• Improves full-length bending accuracy

Electrical System

• Industrial-grade electrical components
• Reliable control architecture
• Clean cabinet layout with cooling system
• Emergency stop and foot control operation

Designed for long service life and minimal downtime

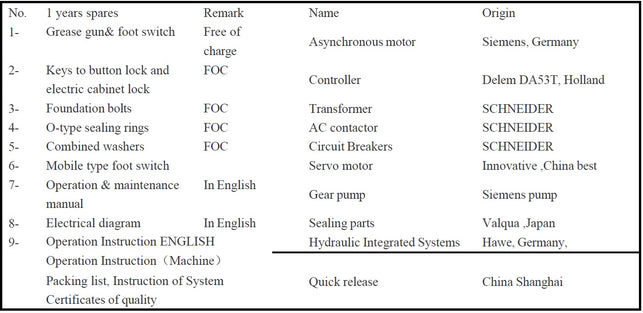

Included Components

• Standard punch and multi-V die tooling
• Foot pedal control with emergency stop
• Front material support arms
• Operation manuals (English)
• Electrical schematics
• Foundation hardware
• Spare seals and service components

🔩 Bending Capacity & Performance

This machine delivers high-precision multi-bend capability across a wide range of material types and thicknesses. Actual bending capacity increases significantly as bend length decreases due to tonnage concentration.

All values below are based on mild steel (A36 ~60,000 PSI tensile) using standard air bending practices.

Maximum Bending Capacity by Length (Mild Steel)

Material-Specific Capacity Adjustments

Different materials require increased tonnage:

Stainless Steel (304 / 316)

• Requires ~1.5× tonnage vs mild steel

Aluminum (5052 / 6061)

• Requires ~60% of mild steel tonnage

Key Performance Capabilities

• High-precision multi-bend operations with ±0.01mm repeatability
• Full-length bending up to 165” with consistent angle accuracy
• Significantly increased forming capacity on shorter parts
• Handles eccentric and off-center loading without loss of accuracy
• Programmable pressure dwell at bottom dead center for consistency
• CNC crowning system ensures uniform bend angle across full length

Applications

• Structural steel fabrication
• Electrical enclosures
• Architectural metalwork
• Industrial equipment manufacturing
• Production bending environments

Why This Machine

• Precision: ±0.01mm repeatability
• Efficiency: Servo-driven energy savings
• Speed: High approach and return speeds
• Flexibility: 4+1 axis control for complex parts
• Durability: Heavy-duty frame and premium components

Availability & Ordering

This machine is built to order and can be configured to meet your specific production requirements, including tooling packages, clamping systems, and automation upgrades.

Lead Time

• Manufacturing Time: 15–20 working days
• Transit Time (Ocean Freight): 25–30 days
• Total Estimated Delivery: ~40–50 days from order placement

Ordering Process

1. Confirm machine configuration and options for final pricing
2. Submit order and deposit (50%)
3. Machine enters production
4. Final inspection and pre-shipment approval
5. Shipment and delivery scheduling

Ask about our financing options as well.

Included Services (No Hidden Costs)

✔ Logistics & Loading Coordination

• Pickup and freight coordination handled
• Delivered to your facility with scheduling support (additional cost for transportation)

✔ Machine Setup & Commissioning Support

• Guidance on machine placement and leveling
• System startup and operational verification
• CNC calibration assistance

✔ Operator Training Included

• DA53T control system training
• Basic programming and bend sequencing
• Material and tooling best practices
• Tips for maximizing accuracy and efficiency

Warranty Coverage

This machine is backed by a comprehensive warranty program designed to ensure long-term reliability and confidence in your investment.

Structural Warranty – 5 Years

• Covers the main machine frame and structural components
• Protects against manufacturing defects, weld integrity issues, and structural deformation under normal operating conditions

Component Warranty – 2 Years

• Covers key operational components including:
• Hydraulic system components
• Servo motor and drive system
• CNC control system (Delem DA53T)
• Electrical components and control hardware

Support & Service

• Remote technical support available for troubleshooting and diagnostics
• Assistance with parts identification and replacement
• Guidance for maintenance and operation

Warranty Notes

• Warranty applies under normal operating conditions and proper maintenance
• Wear items and consumables (seals, tooling, etc.) are not covered
• Installation and operator training are recommended to ensure proper setup and performance
