Elevate your metal fabrication with our 5' x 10' 3000W Fiber Laser Metal Sheet Cutting Machine, a versatile and powerful solution designed for precision and efficiency in small to medium-scale industrial applications. As a key component of our CNC Laser Products Collection, this CNC fiber laser cutter, powered by the industry-leading Max Photonics laser source, delivers clean, high-quality cuts on a wide range of metals, making it ideal for workshops seeking performance and affordability.

Key Features:

• High-Performance Max Photonics Laser Source: Equipped with a reliable 3000W Max Photonics fiber laser source, known for its stability and efficiency, capable of cutting stainless steel up to 12mm, carbon steel up to 20mm, aluminum up to 10mm, brass up to 8mm, and copper up to 6mm with smooth, burr-free edges.

• Large Working Area: Features a 5' x 10' (1500mm x 3000mm) sawtooth worktable with robust load-bearing capacity, ideal for full-size sheet metal processing and diverse project requirements.

• Variable Frequency Drive (VFD): Includes a VFD for energy-efficient operation, reducing power consumption by up to 50% while maintaining consistent performance across varying workloads.

• High-Speed Precision Cutting: Achieves cutting speeds up to 100m/min with ±0.001" accuracy, driven by high-torque Yaskawa servo motors and a precision rack-and-pinion system for smooth, reliable motion.

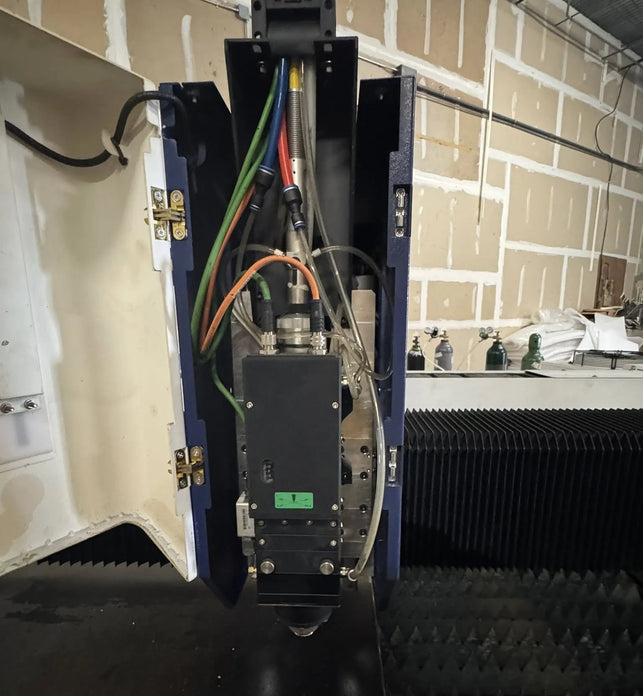

• Auto-Focus Laser Head: Features a Raytools autofocus laser head with advanced sensors for dynamic focus adjustment, ensuring optimal cutting quality on uneven or varying metal thicknesses.

• Advanced CNC Control: Equipped with CypCut control software for intuitive operation, seamless CAD/CAM integration, and optimized nesting to minimize material waste and maximize efficiency.

• Low Maintenance Design: Centralized lubrication system and automatic oil supply reduce maintenance needs, while the heavy-duty welded steel frame ensures long-term durability.

• Optional Rotary Attachment: Add a rotary device for cutting metal tubes up to 220mm in diameter, expanding versatility for diverse applications.

• Comprehensive Installation and Training Included: Price includes professional on-site installation and comprehensive training, with the option for pre-delivery training at our facility to ensure your team is fully prepared before the machine arrives.

Technical Specifications:

• Laser Power: 3000W (Max Photonics)

• Working Area: 5' x 10' (1500mm x 3000mm)

• Cutting Thickness:

  • Carbon Steel: 20mm

  • Stainless Steel: 12mm

  • Aluminum: 10mm

  • Brass: 8mm

  • Copper: 6mm

• Voltage: 380V, 3-phase, 50/60Hz

• Max Cutting Speed: 100m/min

• Positioning Accuracy: ±0.001"

• Dimensions: 197" x 89" x 75" (5010mm x 2260mm x 1900mm)

• Weight: Approx. 6393 lbs (2900 kg)

• Warranty: 2-year parts warranty, 3-year laser source warranty

Why Choose This Fiber Laser Cutting Machine?

As part of our CNC Laser Products Collection, this 3000W fiber laser cutter, powered by the renowned Max Photonics laser source, is perfect for businesses needing high-precision cutting for a variety of metals. The VFD ensures energy efficiency and performance adaptability, making it ideal for industries like automotive, signage, metal fabrication, and custom metalwork. This machine excels at cutting stainless steel, mild steel, aluminum, brass, and more with exceptional speed and quality. With professional installation and training included—available at our facility before delivery or on-site—this machine ensures a seamless setup and immediate productivity. Its compact yet robust design, low operating costs, and minimal maintenance make it an excellent choice for achieving professional-grade results.

Shop Now and enhance your workshop with this high-performance 3000W fiber laser cutting machine, backed by a 2-year warranty, lifetime technical support, and included installation and training!

There is a lead time of 60-90 days till we get these items in stock. You can put a deposit on this vs. covering the whole payment if needed.
