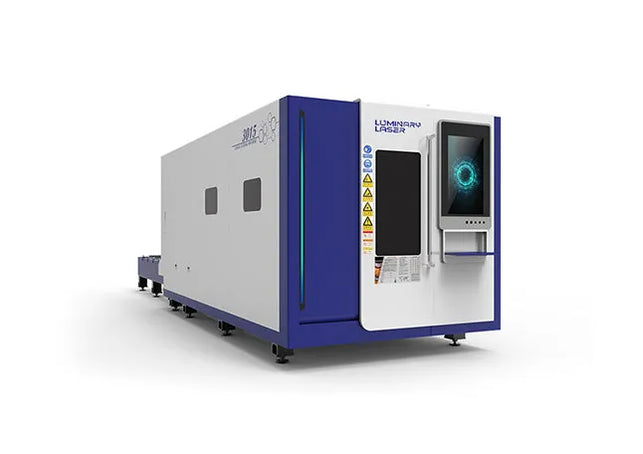

Revolutionize your metal fabrication with our 5' x 10' 6000W Fiber Laser Metal Sheet Cutter, featuring a full enclosure and parallel shuttle table for maximum efficiency and safety. As a premium addition to our CNC Laser Products Collection, this CNC fiber laser cutter, powered by the industry-leading Max Photonics laser source, is engineered for high-speed, high-precision cutting of thick metal sheets, making it ideal for demanding industrial applications.

Key Features:

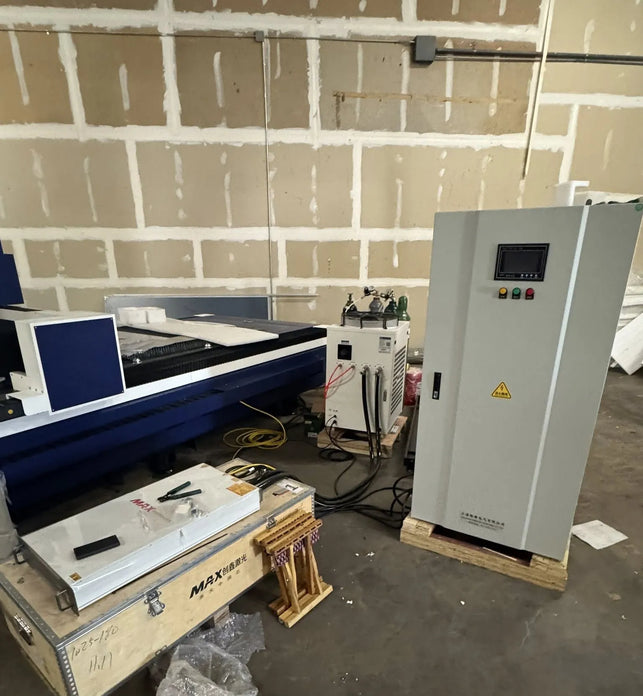

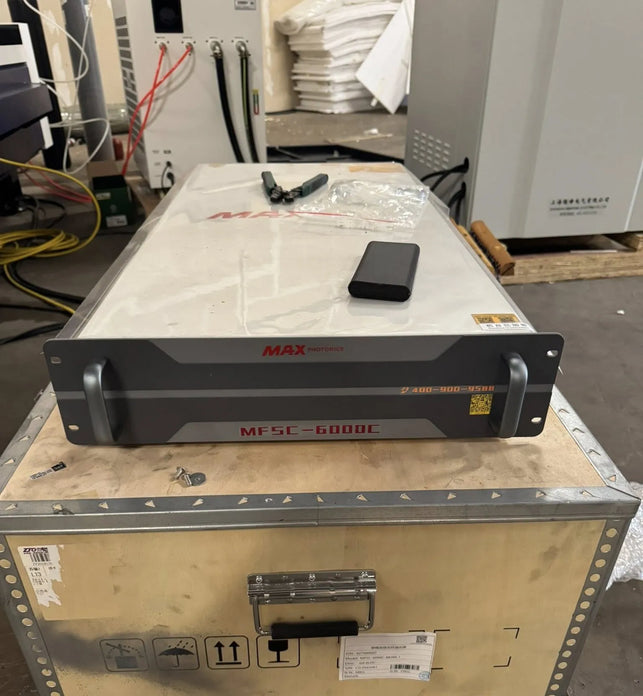

• High-Power Max Photonics Laser Source: Equipped with a 6000W Max Photonics fiber laser source, renowned for its reliability and efficiency, capable of cutting stainless steel up to 25mm, carbon steel up to 25mm, aluminum up to 20mm, brass up to 12mm, and copper up to 10mm with clean, burr-free edges.

• Full Enclosure Design: Fully enclosed structure enhances operator safety by containing laser radiation and fumes, while providing a cleaner, quieter working environment (noise levels as low as 70 dB).

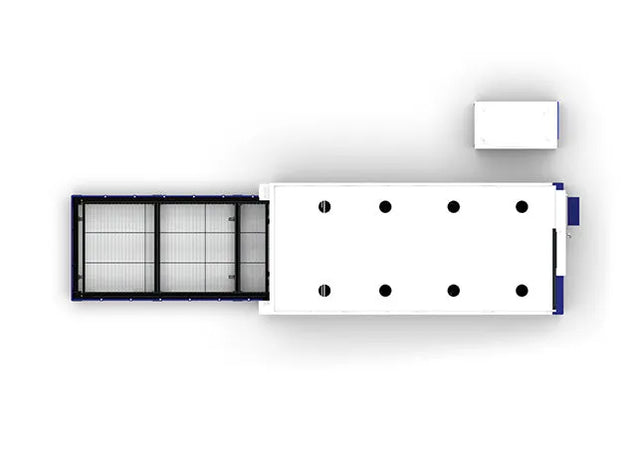

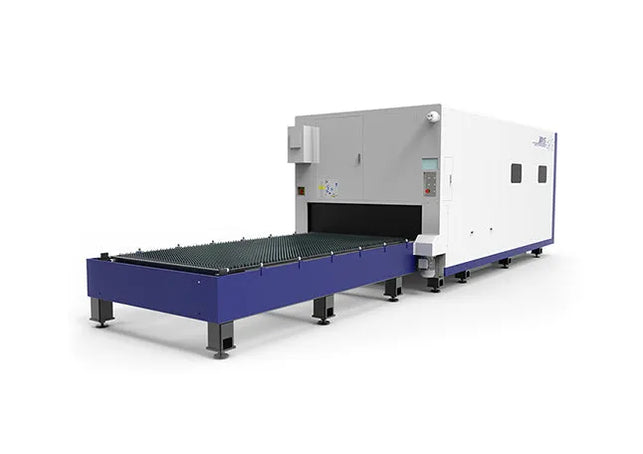

• Parallel Shuttle Table: Features a 15-second parallel shuttle exchange worktable, allowing continuous loading and unloading to minimize downtime and boost productivity.

• Large Working Area: 5' x 10' (1500mm x 3000mm) sawtooth worktable with robust load-bearing capacity, perfect for full-size sheet metal processing and large-scale industrial projects.

• Variable Frequency Drive (VFD): Includes a VFD for energy-efficient operation, reducing power consumption by up to 50% while ensuring consistent performance across varying workloads.

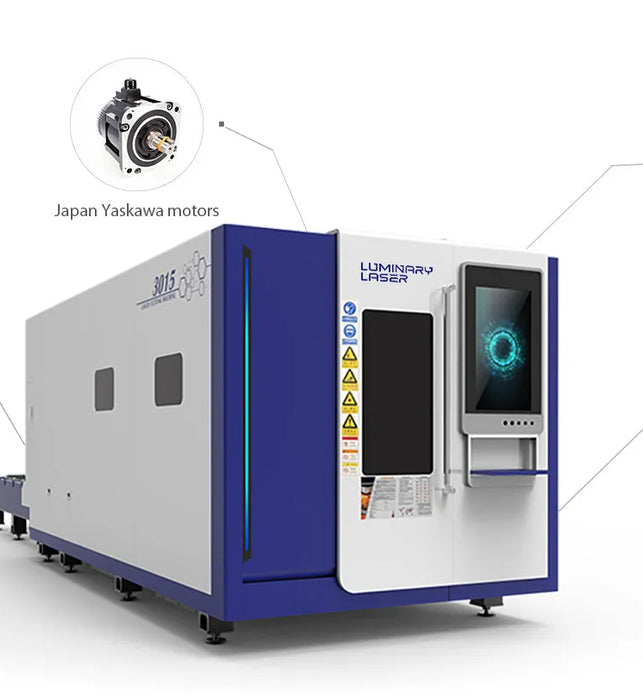

• Ultra-Fast Precision Cutting: Achieves cutting speeds up to 120m/min with ±0.001" accuracy, powered by high-torque Yaskawa servo motors and a precision rack-and-pinion system for smooth, reliable motion.

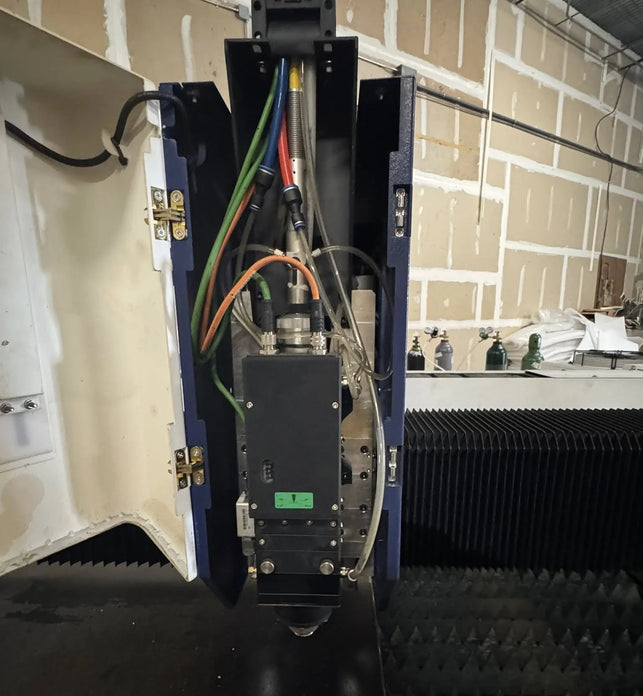

• Auto-Focus Laser Head: Features a Raytools autofocus laser head (Precitec optional for 6kW) with advanced sensors for dynamic focus adjustment, ensuring optimal cutting quality on uneven or thick metal surfaces.

• Advanced CNC Control: Equipped with CypCut control software for intuitive operation, seamless CAD/CAM integration, and optimized nesting to minimize material waste and maximize efficiency.

• Low Maintenance Design: Centralized lubrication system and automatic oil supply reduce maintenance needs, while the heavy-duty welded steel frame ensures long-term durability.

• Optional Rotary Attachment: Add a rotary device for cutting metal tubes up to 220mm in diameter, expanding versatility for diverse applications.

• Comprehensive Installation and Training Included: Price includes professional on-site installation and comprehensive training, with the option for pre-delivery training at our facility to ensure your team is fully prepared before the machine arrives.

Technical Specifications:

• Laser Power: 6000W (Max Photonics)

• Working Area: 5' x 10' (1500mm x 3000mm)

• Cutting Thickness:

  • Carbon Steel: 25mm

  • Stainless Steel: 25mm

  • Aluminum: 20mm

  • Brass: 12mm

  • Copper: 10mm

• Voltage: 380V, 3-phase, 50/60Hz

• Max Cutting Speed: 120m/min

• Positioning Accuracy: ±0.001"

• Max Acceleration: 2G

• Dimensions: 197" x 142" x 80" (5000mm x 3600mm x 2050mm, including enclosure)

• Weight: Approx. 17,637 lbs (8000 kg)

• Warranty: 2-year parts warranty, 3-year laser source warranty

Why Choose This Fiber Laser Cutting Machine?

As a cornerstone of our CNC Laser Products Collection, this 6000W fiber laser cutter with full enclosure and parallel shuttle table is designed for businesses demanding high-power, high-precision cutting with enhanced safety and efficiency. Powered by the Max Photonics laser source, it delivers superior performance for cutting stainless steel, mild steel, aluminum, brass, and more, making it ideal for industries like automotive, aerospace, heavy machinery, and custom metalwork. The parallel shuttle table ensures continuous operation, while the VFD optimizes energy efficiency. With professional installation and training included—available at our facility before delivery or on-site—this machine guarantees a seamless setup and immediate productivity. Its robust design, low operating costs, and minimal maintenance make it the ultimate solution for professional-grade results.

Shop Now and transform your workshop with this high-performance 6000W fiber laser cutting machine, backed by a 2-year warranty, lifetime technical support, and included installation and training!
